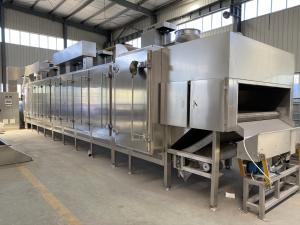

Continuous Fully Automatic Nut Roaster 36kw 2000kg/H For Peanut Hazelnut

Product Categories
Yantai XT Machinery Manufacturing Co.,Ltd
Contact Now

Continuous Fully Automatic Nut Roaster 36kw 2000kg/H For Peanut Hazelnut

Brand Name : XT

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T L/C

Supply Ability : 1SET/Month

Delivery Time : 15-40 Days

Packaging Details : Plywood pallet with wrapping film

warrenty : 1 year

After warranty : video technical support, Online support, spare parts

Voltage : 380±10V

Power : 11.5kw

Weight : 3050KGS

Output product : : Roasted peanut

heating method : LNG/LPG Gas, Electricity

Contact Now

Fully Automatic Controller Peanut Roaster Continuous Nut Roaster Hazelnut Roasting Machine

Continuous Peanut Roaster provides equal heating and even hot air distribution, adopt alternate heating both from bottom and top, hence multifunctional peanut roaster can guarantee the premium roasting quality, correct color and proper moisture ratio.
Continuous Peanut Roastercan dry & roast all kinds of nuts, granulated snacks, it mainly contains automatic feeding system, heating device, transferring conveyor, cooling fan and vibrating discharger. With a recycle conveyor moving, the raw materials will be fed in, dried & roasted by the hot air evenly, finally optimized products are obtained at end of roaster with air temperature. Due to nuts stay on the tray to move forward, continuous roaster is also called conveyor roasters.

For this Continuous Peanut Roaster we provide engineer oversea service for guiding installation, debugging, training, maintenance and continuous technical support.
Continuous Fully Automatic Nut Roaster 36kw 2000kg/H For Peanut Hazelnut
※Process and components
Elevator
DE-Stoner
Roaster
cabinet
output vibrator

※Features

1. It reduces the labor, improves operating efficiency.
2. It has reasonable heat distribution design to circulate the hot airflow passing through the material both up and down,hence optimizes the roasting resulting.
3. It is matched with humidity exhausting fan to discharge the moisture, the fan motor/triangle belt/bearing and mounting base are durable for long time operation.
4. It has unique cooling system to lead cool air within final section of peanut roaster, bring the material temperature down to air temperature.
5. It has facility designed to realize the recirculation of roasting air, hence decreases the energy consumption.
6. Every door on both sides can be opened for easy cleaning.
7. Different areas are insulated and sealed entirely in order to make heat loss minimum, and reduce running cost.
No
Item
DGNKX-7300
DGNKX-7800
DGNKX-11600
DGNKX-13000
1
Power
14.6kw
22.6kw
22.6kw
36kw
2
capacity
500Kg/h
1000kg/h
1000kg/h
2000kg/h
3
Roasting temperature
0°C to 180°C
4
Heating way
LPG/GAS/ELECTRIC
5
conveyor speed
adjustable
6
Material thickness
6-10cm
7
Gas supply condition
Gas burning pressure :3-7kpa
gas pipeline pressure:20-50kpa
8
installation Dimension
10.3*2.4*2.9m
10.8*4.15*3.8m
14.6*2.4*2.9m
16*4.15*3.8m

Continuous Fully Automatic Nut Roaster 36kw 2000kg/H For Peanut Hazelnut

Continuous Fully Automatic Nut Roaster 36kw 2000kg/H For Peanut Hazelnut

Continuous Fully Automatic Nut Roaster 36kw 2000kg/H For Peanut Hazelnut

Continuous Fully Automatic Nut Roaster 36kw 2000kg/H For Peanut Hazelnut

Continuous Fully Automatic Nut Roaster 36kw 2000kg/H For Peanut Hazelnut
